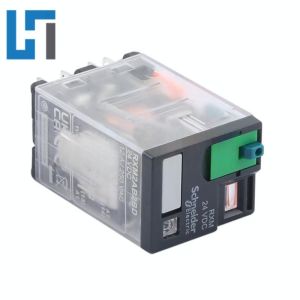

RXM2AB2BD Schneider RXM Relay Small Plc Programming Controller Module

2. Key Selling Points

1. Compact Plug-in Relay Design:Part of the Harmony RXM series, featuring a compact miniature form factor that saves panel space—ideal for high-density control cabinet layouts.

2. Double Pole Double Throw (DPDT) Contact Configuration:Equipped with 2 change-over contacts (2 Form C), enabling independent switching of two circuits with both NO and NC functionality—offering flexible circuit control.

3. DC Coil Voltage: 24 V DC:Operates on 24 V DC coil voltage, compatible with standard PLC digital outputs, allowing direct drive from automation controllers without level-shifting.

4. High Load Switching Capacity:Contacts rated up to 12 A (Ithe inside shell), capable of directly switching contactor coils, small motors, solenoid valves, and indicator lights—reducing need for additional interface relays.

5. Plug-in Mounting for Easy Maintenance:Designed for socket mounting (compatible with RXZ or RT series sockets), enabling quick replacement or testing without rewiring—improving field service efficiency.

6. High Reliability & Long Service Life:Features silver alloy contacts and reinforced insulation for excellent arc resistance and wear durability. Mechanical life up to 20 million operations, electrical life over 100,000 operations (depending on load).
